Revit Hatch Patterns - Stone Pavers Package
This package contains 12 stone paver hatch patterns that you can use to create filled regions or surface patterns in Revit.
Think of all the time you’ll save from having to create these hatch patterns yourself!
Think of all the time you’ll save from having to create these hatch patterns yourself!

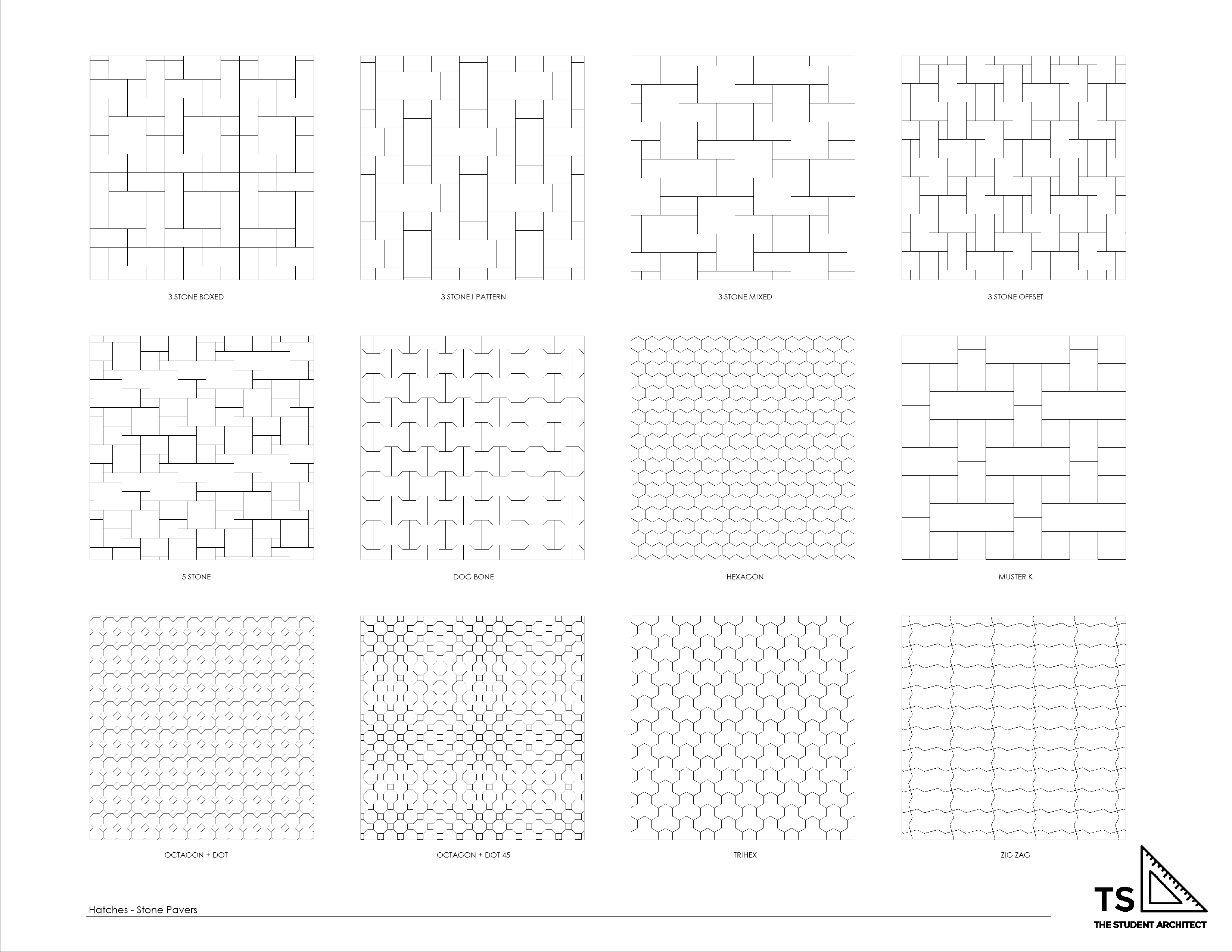

List of hatch patterns includes:
- 3 Stone Boxed
- 3 Stone I Pattern
- 3 Stone Mixed
- 3 Stone Offset
- 5 Stone
- Dog Bone
- Hexagon
- Muster K
- Octagon Dot
- Octagon Dot 45
- Trihex
- ZigZag
Included in the package:
- 12 .PAT Files
- PDF showing each hatch pattern and name
- Bonus resources
These .PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.You can use these hatches with any version of Revit.
Watch the video below to learn what to do after you make a purchase.
Get the
Stone Paver Revit Hatch Patterns Package
for $9
Disclaimers:
All sales are final. There are no refunds on digital products.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
All sales are final. There are no refunds on digital products.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
- Use in unlimited personal and professional projects.
- Modify or adapt the files to suit specific project requirements.
- Reselling, sharing, or redistributing the original or modified files.
- Including the files in any asset library, template collection, or product for resale or free distribution.
- Claiming the files as your own original work.
